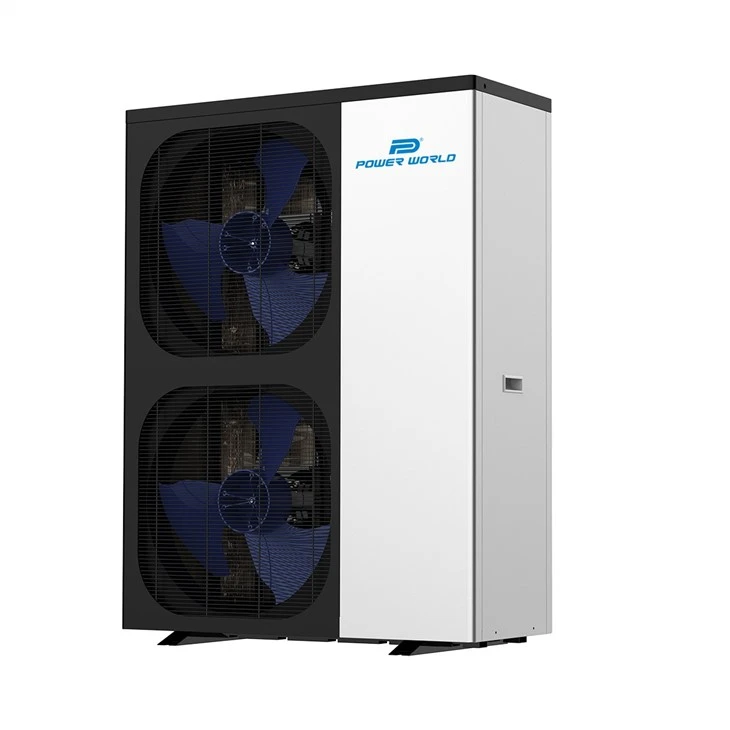

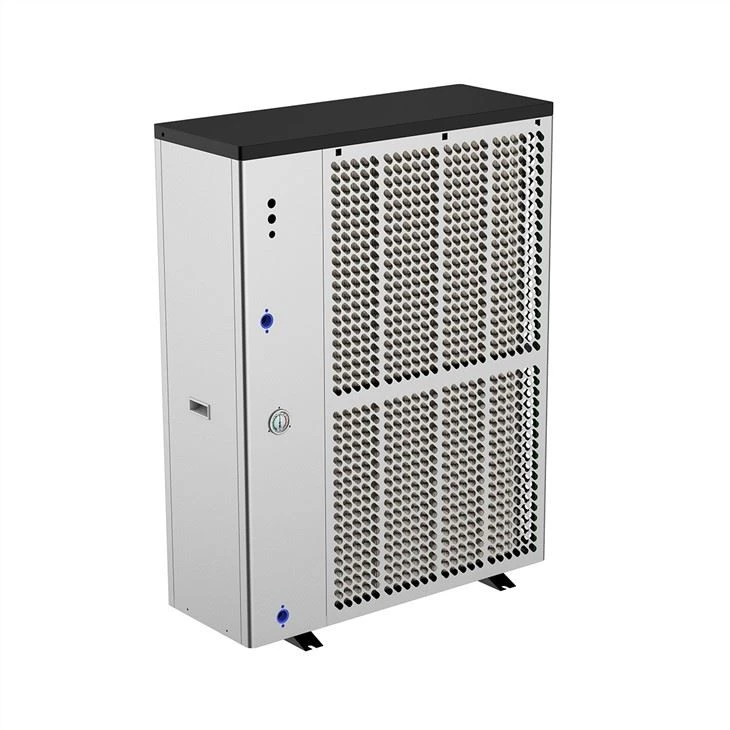

PowerWorld EVI DC ponp chalè varyateur ak kontwolè CAREL non sèlman pèmèt inite a gen pèfòmans segondè-efikasite, men lojik ekselan kontwòl li asire ke inite a kouri estab nan tanperati ki ba ultra-ba nan -30 degre, fasil kreye yon cho. ak kay konfòtab pou itilizatè yo.
Karakteristik
•Twa Pwovizyon pou Chofaj, Refwadisman, ak DHW;
• Remote Wi-Fi ak Entènèt bagay (loT) Remote Control;
• Plizyè Pwosesis Rediksyon Bri;
•De pò aparèy chofaj elektrik pou pi wo bezwen chofaj;
•Kontwòl Tanperati egzak ±0.1 degre;
•Four Operating Modes Pwisan, Smart, Silans, ak Vakans.
Pwodwi spesifikasyon
|
Modèl pwodwi |
PW030-DKZLRS-A |
PW040-DKZLRS-A |
PW050-DKZLRS-A |
PW060-DKZLRS-A |
PW080-DKZLRS-A |
PW0100-DKZLRS-A
|
|
|
Chofaj |
Ranje kapasite chofaj (kW) |
1.57~8.40 |
4.40~13.00 |
5.9~18.2 |
7.5~23.0 |
10.2~28.0 |
12.8-35.0 |
| Ranje D' chofaj (kW) |
0.32~1.87 |
0.90~3.02 |
1.20~4.11 |
1.53~5.23 |
2.07~6.36 |
2.61~7.99 |
|
| ranje aktyèl (A) |
1.42~8.30 |
1.39~4.68/ |
1.86~6.37/ |
2.37~8.11 |
3.70~11.4 |
4.67~14.3 |
|
| KOP Range |
4.49~4.91 |
4.30~4.90 |
4.43~4.92 |
4.40~4.90 |
4.40~4.92 |
4.38~4.90 |
|
|
Refwadisman |
Ranje kapasite refwadisman (kW) |
0.99~6.22 |
2.80~8.20 |
3.81~11.53 |
4.73~14.6 |
6.54~19.8 |
8.13~24.6 |
| Refwadisman pouvwa D '(kW) |
0.29~2.18 |
0.85~3.31 |
1.11~4.05 |
1.39~5.14 |
1.92~6.97 |
2.42~8.75 |
|
| ranje aktyèl (A) |
1.28~9.67 |
1.32~5.13/ |
1.72~6.28/ |
2.16~7.97 |
3.43~12.5 |
4.33~15.6 |
|
| EER Range |
2.85~3.41 |
2.48~3.29 |
2.85~3.43 |
2.84~3.40 |
2.84~3.40 |
2.81~3.36 |
|
|
TIRE |
Ranje kapasite chofaj (kW) |
1.28~6.81 |
3.52~10.50 |
4.80~14.72 |
6.1~18.5 |
12.3~20.4 |
13.6~22.6 |
| Ranje D' chofaj (kW) |
0.31~2.13 |
0.88~3.39 |
1.17~4.60 |
1.53~5.97 |
2.8~5.37 |
3.09~5.95 |
|
| ranje aktyèl (A) |
1.38~9.45 |
1.36~5.26/ |
1.82~7.15/ |
2.37~9.26 |
5.0~9.6 |
5.52~10.6 |
|
| KOP Range |
3.2~4.1 |
3.1~4.0 |
3.2~4.1 |
3.1~4.0 |
3.8~4.4 |
3.8~4.4 |
|
|
Refrijeran |
R32 |
||||||
|
Ekipman pou pouvwa |
230V/1Ph/50-60Hz |
230V/1Ph/50-60Hz 380V/3Ph/50-60Hz |
230V/1Ph/50-60Hz 380V/3Ph/50-60Hz |
380V/3Ph/50-60Hz |
|||
|
Zòn travay |
-30~43 degre |
||||||
|
sikilasyon dlo (m³/H) |
1.4 |
2.2 |
3.1 |
4.0 |
4.8 |
6.0 |
|
|
Gout presyon dlo (kPa) |
31 |
25 |
35 |
45 |
40 |
50 |
|
|
IP Klas (Nivo pwoteksyon) |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
|
|
Pousantaj chòk anti-elektrik |
I |
I |
I |
I |
I |
I |
|
|
Bri (dB(A)) |
Mwens pase oswa egal a 53 |
Mwens pase oswa egal a 55 |
Mwens pase oswa egal a 57 |
Mwens pase oswa egal a 58 |
Mwens pase oswa egal a 62 |
Mwens pase oswa egal a 66 |
|
|
Pwa nèt / pwa brit (kg) |
110/120 |
140/150 |
170/180 |
180/190 |
210/220 |
230/240 |
|
|
Dyamèt tiyo (mm) |
DN25 |
DN25 |
DN25 |
DN25 |
DN32 |
DN32 |
|
|
Gwosè kò (W * D * H) (mm) |
970×475×835 |
1100×475×985 |
1050×480×1330 |
1050×480×1330 |
1160×500×1580 |
1160×500×1580 |
|
|
Kantite chaj (20GP/40GP/40HQ) |
44/88/88 |
44/88/88 |
22/46/46 |
22/46/46 |
18/40/40 |
18/40/40 |
|
|
Nivo ERP (35 degre) |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
Nivo ERP (55 degre) |
A++ |
A++ |
A++ |
A++ |
A++ |
A++ |
|
|
Tanperati dlo opere ( degre ) DHW |
9 ~ 55 degre |
||||||
|
Opere tanperati dlo (degre) chofaj |
9 ~ 50 degre |
||||||
|
Tanperati dlo opere ( degre ) refwadisman |
7 ~ 35 degre |
||||||
